DP18-33A audio speaker 18 inch subwoofer

Description

DP18-33A audio speaker 18 inch subwoofer. AES Power Handing 1200W, Sensitivity 1W/1M 94dB, Frequency Range 36-1.7KHz.280mm Ferrite Ring magnet and 125mm voice coil. It is characterized by high power, high sensitivity, very smooth frequency response curve

Inquire Now

Form of Information

DP18-33A audio speaker 18 inch subwoofer

General Specifications
Nominal Diameter		464mm/18.18inch
Nominal Impedance		4Ω
AES Power Handing		1200W (AES)
Maximum Power		2400W
Sensitivity 1W/1M		94dB
Frequency Range		36-1.7kHZ
Voice Coil Diameter		125.4mm/4.9 inch
Windinig Material		Copper
Former Material		Glass Fibre
Winding Depth		30mm
surround material		Polycotton
surround Design		M-roll
Magnet	Φ280	Ferrite Ring
Thiele & Small Parameters
Resonance Frequency	Fs	36Hz
DC Resistance	Re	6.44Ω
Mechanical Factor	Qms	27.42
Electrical Factor	Qes	0.31
Total Factor	Qts	0.3
BL Factor	BL	47.75T.m
Effective Moving Mass	Mms	490.5g
Compliance	Cms	40uM/N
Equivalent Cas Air Load	Vas	85.6L
Effettive Piston Area	Sd	1225.42cm²
η(Eta Zero)	η0	1.20%
Mountiong & Shipping Information
Overall Diameter		464mm
Bolt circle diameter		444mm
Baffle Cutout Diameter		418mm
Depth		218mm
Net Weight		21.5KG

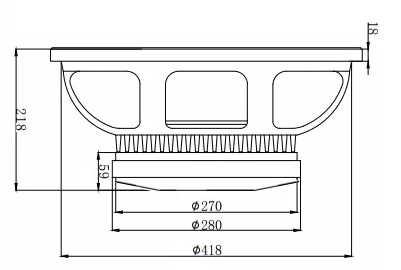

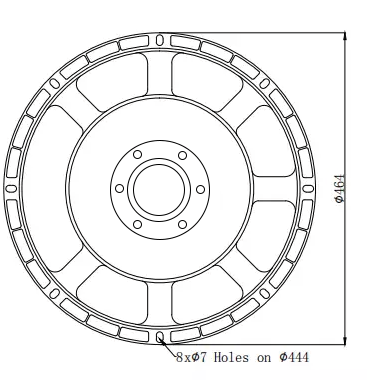

This is the size chart of the MR18-33A, which can better help you design and install the speaker:

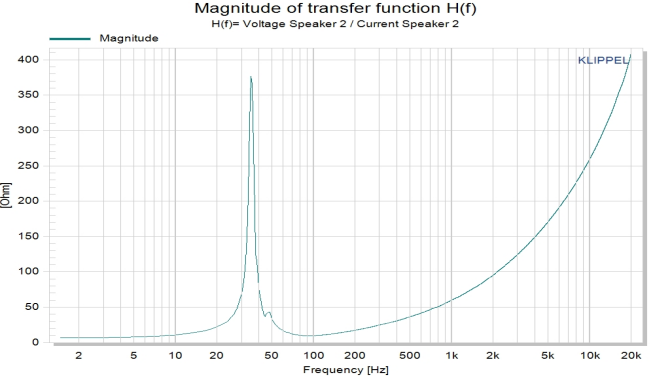

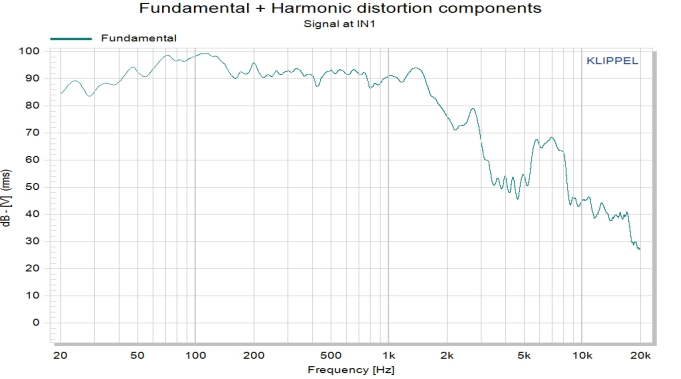

MR18-33A 18-inch subwoofer speaker curve graph.
