SPL 4000W CAR AUDIO AMPLIFIER-XT4000.1D

Description

SPL 4000W * 1CH HIGH POWER CLASS D CAR AUDIO AMPLIFIER

Form of Information

SPL 4000W CAR AUDIO AMPLIFIER-XT4000.1D

High Powerful 4000w Digital Car Amplifier-40000.1D
Model XT-4000.1
Type Amplifier
Frequency Response 15-270 Hz
Class D
Number of the channels 1
1 Ohm RMS Power (15 V) 4830 W
1 Ohm RMS Power (14.4 V) 4000 W
2 Ohm RMS Power (14.4 V) 2500 W
4 Ohm RMS Power (14.4 V) 1350 W
Minimum permissible load on the channel 1 Ohm
Minimum permissible load in a bridge connection 2 Ohm
Input SPL 6-0.2 V
Low Pass Filter 35-250 Hz
Subsonic Filter 10-50 Hz
Bass Boost 0-9 dB
Input Terminal 0 Ga x 2
Output Terminal 8 Ga
Fuse Rating 350 A
Working Voltage 9-15 V
Phase Regulation 0-180°
Signal/Sound 95 dB
Dimensions (L x W x H) 540x254x64.5 mm
Features:

lRobust design based on Heavy duty gloss black with brushed accents.

lAdvanced Class-D Technology to reach high power output.

lCool blue led lighting indicated terminal to easy install

lFull range, Combine and Mono block subwoofer amplifier

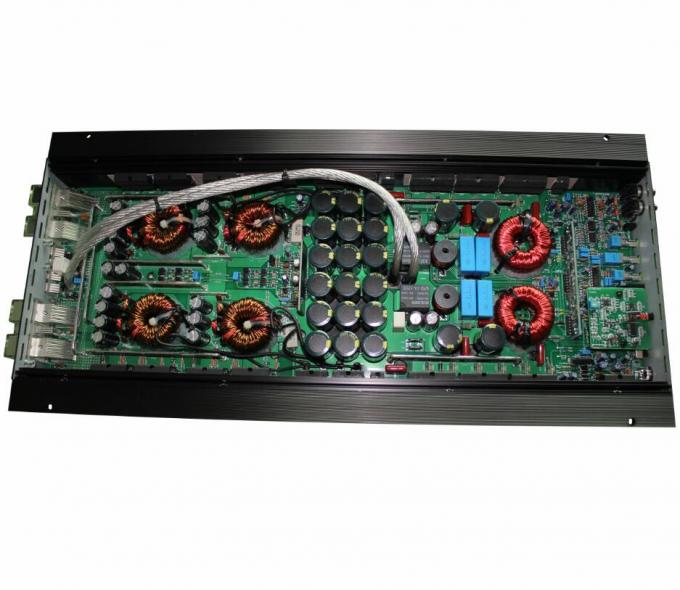

lDouble side circuit board with precision SMT

l0-18dB at 45Hz Bass Boost

lPhase adjustable for 3CH, 5CH and Mono Blocks from 0-180 degrees.

lLine input from 0.2V to 4 V

lMono Block power output built on 1 ohm stable

lHuge power terminal can hold 2#AWG( American Wire Gauge ) cable since 1600W Power Block

lDash mount remote gain include under voltage, over current, voltage, temperature

Packaging Details

Unit Type:piece

Package Weight:19.00kg

High Powerful 4000w Digital Car Amplifier-4000.1DHigh Powerful 4000w Digital Car Amplifier-4000.1DHigh Powerful 4000w Digital Car Amplifier-4000.1D













High Powerful 4000w Digital Car Amplifier-4000.1D

Company Introduction

Shenzhen Digital Power Technology Co., Ltd. was established in 2005.

Our company mainly produced for car speaker, car subwoofer, car crossover, car amplifier  (specially for class D, class AB amplifier),car DSP amplifier,car audio, car DVD GPS navigation, car radio, car capacitor, car audio wire, car accessories etc.

We have our own AI and SMT & Wave workshop, 100% 4 hours aging test before final assembly. We have our own automatic glue machine to  keep our quality.
Our products are sold to many countries like USA, Europe, Russian, Indonesia, South American, Turkey etc.

We focus on OBM/ODM/OEM projects,at Shenzhen Digital Power Technology Co., Ltd., we are technology driven and clients focused. We have a clear vision how to best serve our valued clients. Our mission is to provide the best solution with your in-vehicle electronics,as our experienced engineers are able to do  any magic design as you want.





FAQ

Q1: How can i get a sample?

A:

If you need some samples to test, we can make as per your request.

You should pay for the transportation freight of samples and our samples cost, while the samples cost can be refundable after you place the order. Thanks.

Q2: How much the transportation freight of samples?

A:

The freight depends on the weight and packing size and your area.

Q3: Can you produce according to customers' design?

A:

We mainly do the OEM/ODM service.

Q4: Is it OK to print my logo on the product?

A:

Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q5: How to order?

A:

Please send us your purchase order by mail or WhatsApp with below information:

1) Product information: Quantitiy, Model number, Specification.

2) Delivery time required.

3) Shipping information: Company name, Address, Phone number, Destination: seaport/airport.

4) Forwarder's contact details if you have.

Q6: OUR services

A:

1. Any questions from you are welcome and will be replied in 24 working hours.

2. Experienced staff answer all your questions in fluent English.

3. Special discount and protection of sales area provided to our distributor.

4. Specialized in speakers over 17 years.

5. A team of designers and engineers are capable to create new items according to personal request.

6. Customized design is available.

Welcome OEM and ODM
