SPL 8000W CAR AUDIO AMPLIFIER-XT8000.1D

Description

SPL 8000W * 1CH HIGH POWER CLASS D CAR AUDIO AMPLIFIER

Form of Information

SPL 8000W CAR AUDIO AMPLIFIER-XT8000.1D

Model XT-8000.1D
Type Amplifier
Frequency Response 15-270 Hz
Class D
Number of the channels 1
1 Ohm RMS Power (15 V) 9910 W
1 Ohm RMS Power (14.4 V) 8000 W
2 Ohm RMS Power (14.4 V) 4760 W
4 Ohm RMS Power (14.4 V) 2650 W
Minimum permissible load on the channel 1 Ohm
Minimum permissible load in a bridge connection 2 Ohm
Input SPL 6-0.2 V
Low Pass Filter 35-250 Hz
Subsonic Filter 10-50 Hz
Bass Boost 0-9 dB

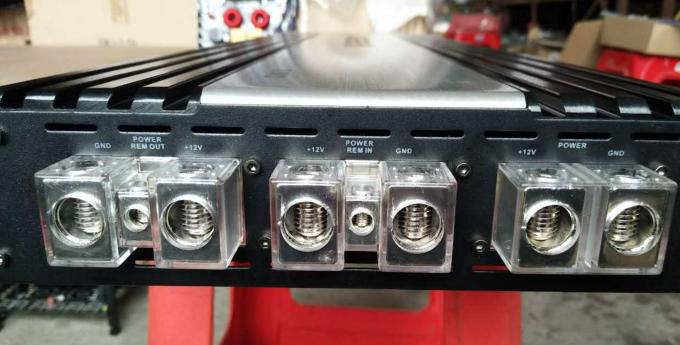

Input Terminal 0 Ga x 3
Output Terminal 8 Ga
Fuse Rating 750 A
Working Voltage 9-15 V
Phase Regulation 0-180°
Signal/Sound 95 dB
Dimensions (L x W x H) 820x300x76 mm
Features:

lRobust design based on Heavy duty gloss black with brushed accents.

lAdvanced Class-D Technology to reach high power output.

lCool blue led lighting indicated terminal to easy install

lFull range, Combine and Mono block subwoofer amplifier

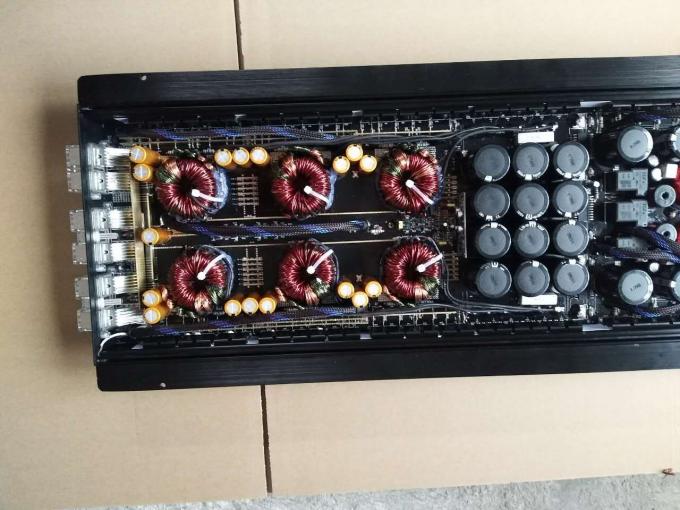

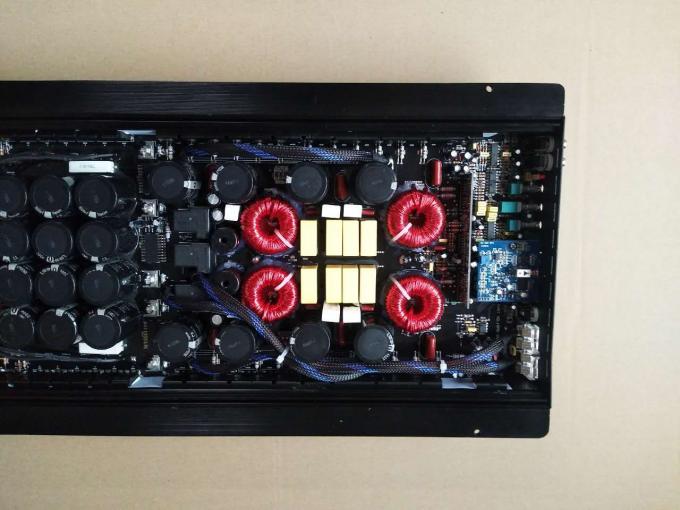

lDouble side circuit board with precision SMT

l0-18dB at 45Hz Bass Boost

lPhase adjustable for 3CH, 5CH and Mono Blocks from 0-180 degrees.

lLine input from 0.2V to 4 V

lMono Block power output built on 1 ohm stable

lHuge power terminal can hold 2#AWG( American Wire Gauge ) cable since 1600W Power Block

lDash mount remote gain include under voltage, over current, voltage, temperature

Packaging Details

Unit Type:piece

Package Weight:24.00kg


SPL stand 8K Digital Car Amplifier-8000.1DSPL stand 8K Digital Car Amplifier-8000.1DSPL stand 8K Digital Car Amplifier-8000.1DSPL stand 8K Digital Car Amplifier-8000.1DSPL stand 8K Digital Car Amplifier-8000.1DSPL stand 8K Digital Car Amplifier-8000.1D
